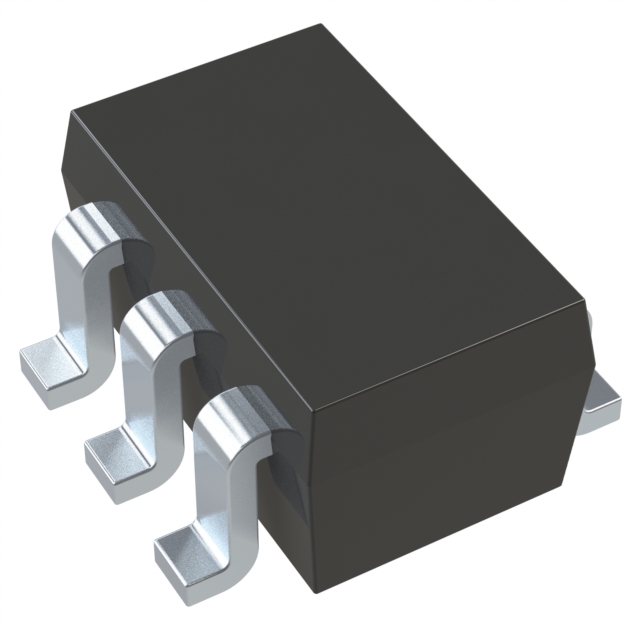

- Product Model NC7WZ14P6X
- Brand Sanyo Semiconductor/onsemi
- RoHS 1
- Description IC INVERT SCHMITT 2CH 2-INP SC88
- Classification Integrated Circuits - ICs
-
PDF
- 3000 0.06
- 6000 0.05
- 15000 0.04
- 30000 0.04
- 75000 0.04
- 150000 0.03
Technical Details
- Features Schmitt Trigger
- Package / Case 6-TSSOP, SC-88, SOT-363
- Mounting Type Surface Mount
- Logic Type Inverter
- Operating Temperature -40°C ~ 85°C
- Voltage - Supply 1.65V ~ 5.5V
- Current - Output High, Low 32mA, 32mA
- Number of Inputs 2
- Supplier Device Package SC-88 (SC-70-6)
- Input Logic Level - High 1.4V ~ 3.6V
- Input Logic Level - Low 0.2V ~ 1.2V
- Max Propagation Delay @ V, Max CL 4.9ns @ 5V, 50pF
- Number of Circuits 2
- Current - Quiescent (Max) 1 µA
