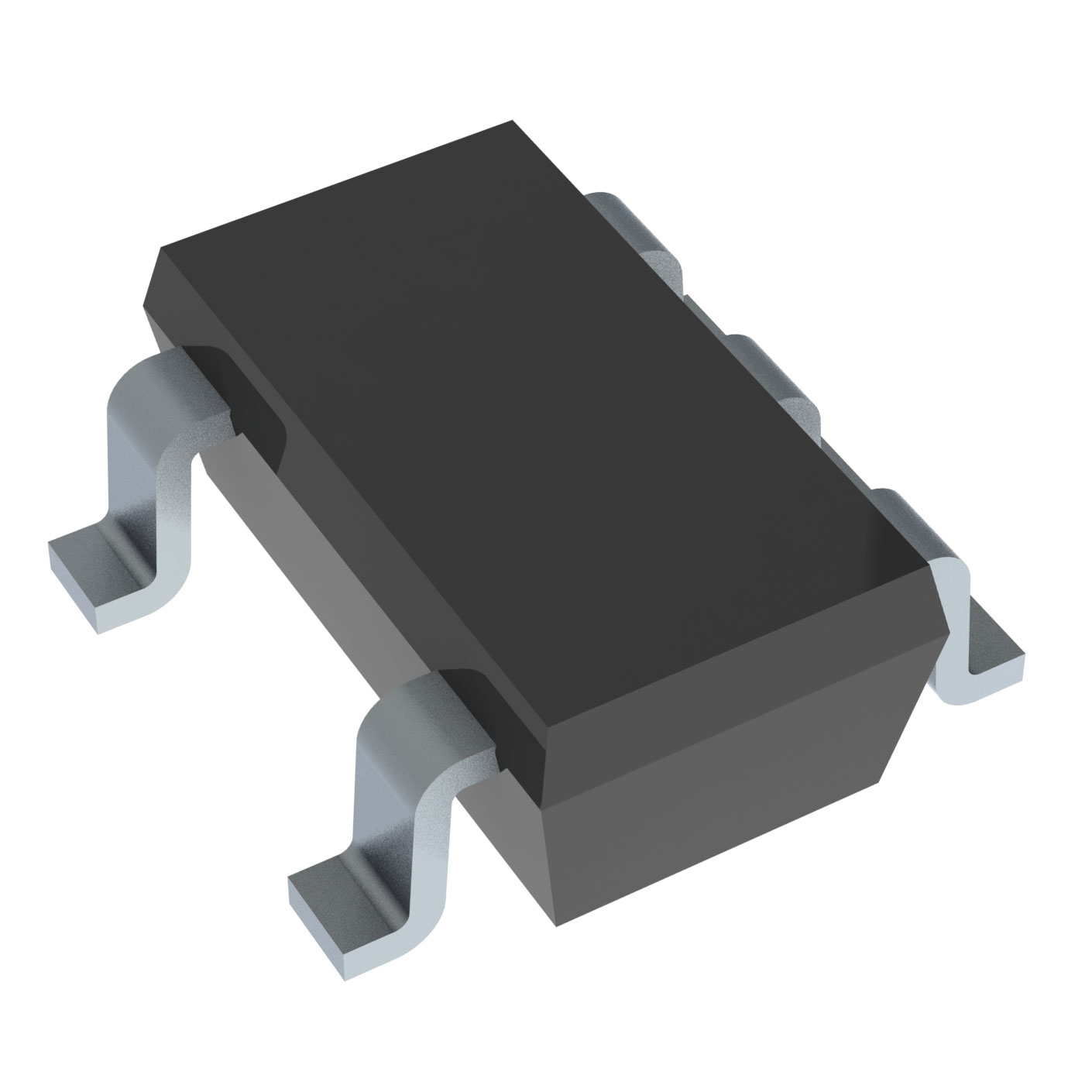

- Product Model SN74AHC1G08DBVR
- Brand Texas Instruments
- RoHS 1
- Description IC GATE AND 1CH 2-INP SOT23-5
- Classification Integrated Circuits - ICs
-
PDF
- 3000 0.06
- 6000 0.05
- 15000 0.05
- 30000 0.05
- 75000 0.04
- 150000 0.04
Technical Details
- Package / Case SC-74A, SOT-753
- Mounting Type Surface Mount
- Logic Type AND Gate
- Operating Temperature -55°C ~ 125°C
- Voltage - Supply 2V ~ 5.5V
- Current - Output High, Low 8mA, 8mA
- Number of Inputs 2
- Supplier Device Package SOT-23-5
- Input Logic Level - High 1.5V ~ 3.85V
- Input Logic Level - Low 0.5V ~ 1.65V
- Max Propagation Delay @ V, Max CL 7.9ns @ 5V, 50pF
- Number of Circuits 1
- Current - Quiescent (Max) 1 µA
