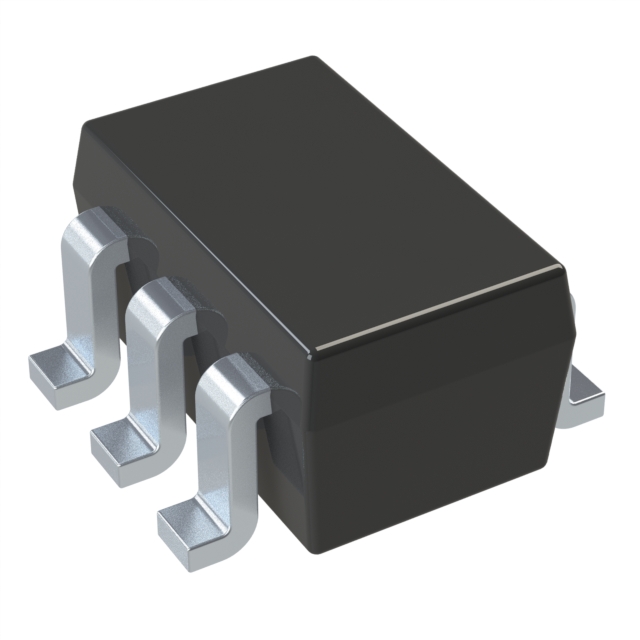

- Product Model ADG839YKSZ-REEL7
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS 1
- Description IC SWITCH SPDTX1 500MOHM SC70-6
- Classification Integrated Circuits - ICs
-
PDF
Inventory:18968
Pricing:
- 3000 1.39
Technical Details
- Package / Case 6-TSSOP, SC-88, SOT-363
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TA)
- On-State Resistance (Max) 500mOhm
- -3db Bandwidth 25MHz
- Supplier Device Package SC-70-6
- Voltage - Supply, Single (V+) 1.65V ~ 3.6V
- Charge Injection 70pC
- Crosstalk -57dB @ 100kHz
- Switch Circuit SPDT
- Multiplexer/Demultiplexer Circuit 2:1
- Channel-to-Channel Matching (ΔRon) 40mOhm
- Switch Time (Ton, Toff) (Max) 16ns, 8.5ns
- Channel Capacitance (CS(off), CD(off)) 74pF
- Current - Leakage (IS(off)) (Max) 200pA (Typ)
- Number of Circuits 1
