Technical Details

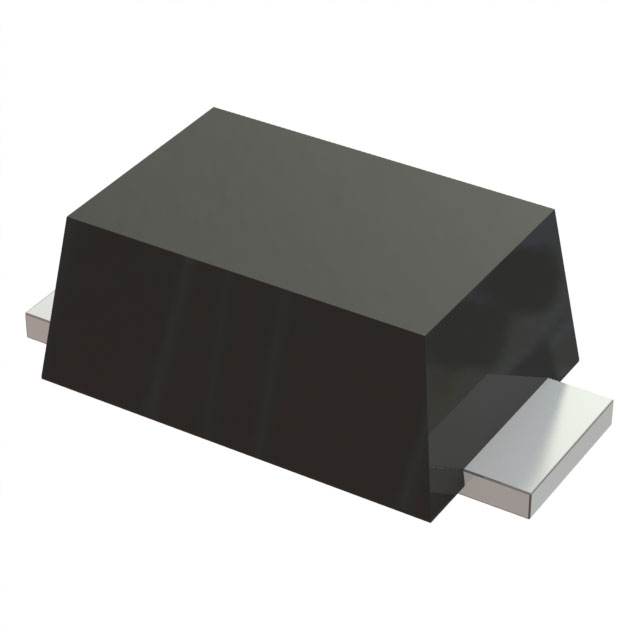

• Package / Case DO-214AA, SMB
• Mounting Type Surface Mount
• Speed Fast Recovery =< 500ns, > 200mA (Io)
• Reverse Recovery Time (trr) 35 ns
• Technology Standard
• Current - Average Rectified (Io) 1A
• Supplier Device Package SMB
• Operating Temperature - Junction -65°C ~ 175°C
• Voltage - DC Reverse (Vr) (Max) 200 V
• Voltage - Forward (Vf) (Max) @ If 875 mV @ 1 A
• Current - Reverse Leakage @ Vr 2 µA @ 200 V
