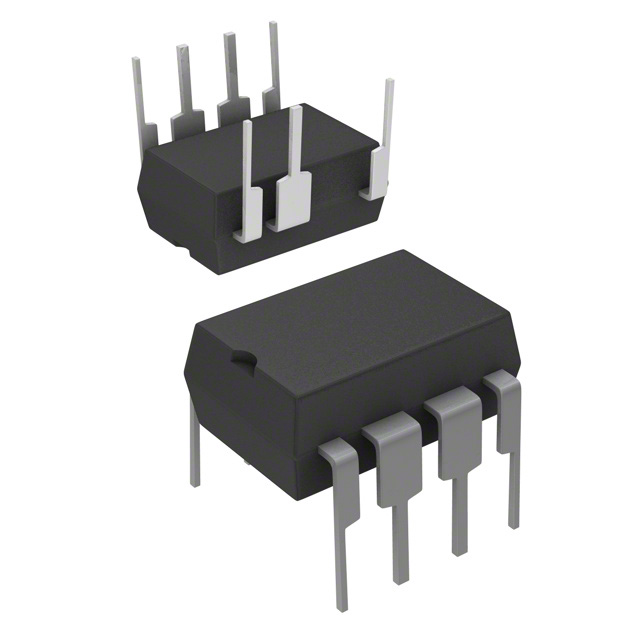

- Product Model LNK306PN
- Brand Power Integrations
- RoHS 1
- Description IC OFFLINE SWITCH MULT TOP 8DIP
- Classification Integrated Circuits - ICs
-
PDF
Inventory:12094
Technical Details
- Package / Case 8-DIP (0.300", 7.62mm), 7 Leads
- Mounting Type Through Hole
- Operating Temperature -40°C ~ 150°C (TJ)
- Duty Cycle 69%
- Frequency - Switching 66kHz
- Internal Switch(s) Yes
- Voltage - Breakdown 700V
- Output Isolation Non-Isolated
- Topology Buck, Buck-Boost, Flyback
- Supplier Device Package 8-PDIP-B
- Fault Protection Current Limiting, Open Loop, Over Temperature, Short Circuit
