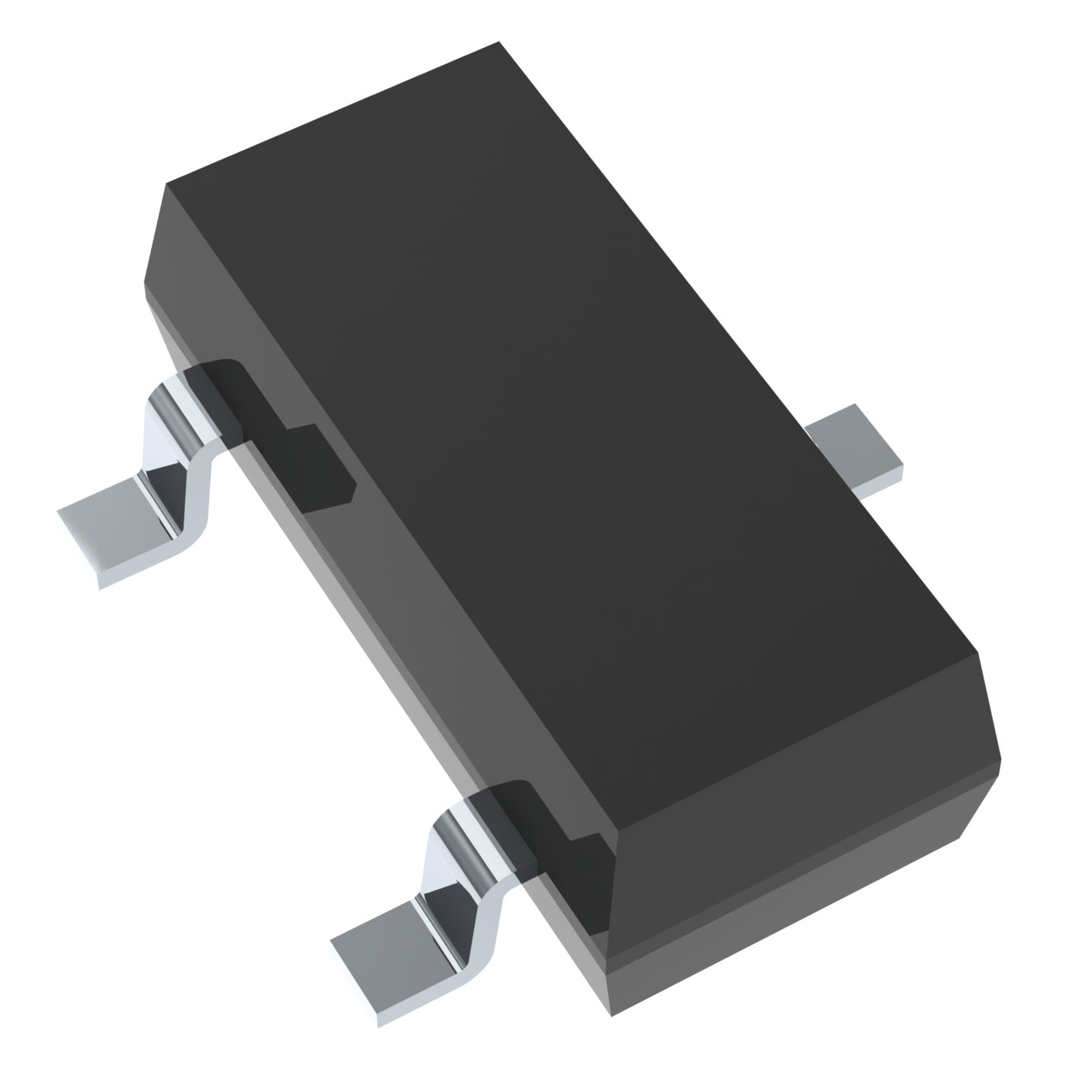

- Product Model BAT54SFILM
- Brand STMicroelectronics
- RoHS 1
- Description DIODE ARR SCHOTT 40V 300MA SOT23
- Classification Integrated Circuits - ICs
-
PDF
- 3000 0.06
- 6000 0.05
- 9000 0.04
- 30000 0.04
- 75000 0.04
- 150000 0.03
Technical Details
- Package / Case TO-236-3, SC-59, SOT-23-3
- Mounting Type Surface Mount
- Speed Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr) 5 ns
- Technology Schottky
- Diode Configuration 1 Pair Series Connection
- Current - Average Rectified (Io) (per Diode) 300mA (DC)
- Supplier Device Package SOT-23-3
- Operating Temperature - Junction -40°C ~ 150°C
- Voltage - DC Reverse (Vr) (Max) 40 V
- Voltage - Forward (Vf) (Max) @ If 900 mV @ 100 mA
- Current - Reverse Leakage @ Vr 1 µA @ 30 V
