- Product Model NDS355AN
- Brand Sanyo Semiconductor/onsemi
- RoHS 1
- Description MOSFET N-CH 30V 1.7A SUPERSOT3
- Classification Integrated Circuits - ICs
-
PDF
- 3000 0.18
- 6000 0.17
- 9000 0.16
- 30000 0.16
Technical Details
- Package / Case TO-236-3, SC-59, SOT-23-3
- Mounting Type Surface Mount
- Operating Temperature -55°C ~ 150°C (TJ)
- Technology MOSFET (Metal Oxide)
- FET Type N-Channel
- Current - Continuous Drain (Id) @ 25°C 1.7A (Ta)
- Rds On (Max) @ Id, Vgs 85mOhm @ 1.9A, 10V
- Power Dissipation (Max) 500mW (Ta)
- Vgs(th) (Max) @ Id 2V @ 250µA
- Supplier Device Package SOT-23-3
- Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
- Vgs (Max) ±20V
- Drain to Source Voltage (Vdss) 30 V
- Gate Charge (Qg) (Max) @ Vgs 5 nC @ 5 V
- Input Capacitance (Ciss) (Max) @ Vds 195 pF @ 15 V
Related Products
CONN RCPT USB2.0 MICRO B SMD R/A
Inventory: 73279
IC EEPROM 256KBIT I2C 8SOIC
Inventory: 5944
DIODE SCHOTTKY 100V 150MA SOD123
Inventory: 58345
DIODE SCHOTTKY 30V 200MA SOT23-3
Inventory: 182457
DIODE ZENER 3.3V 500MW SOD123
Inventory: 241682
LED GREEN CLEAR CHIP SMD
Inventory: 1694231

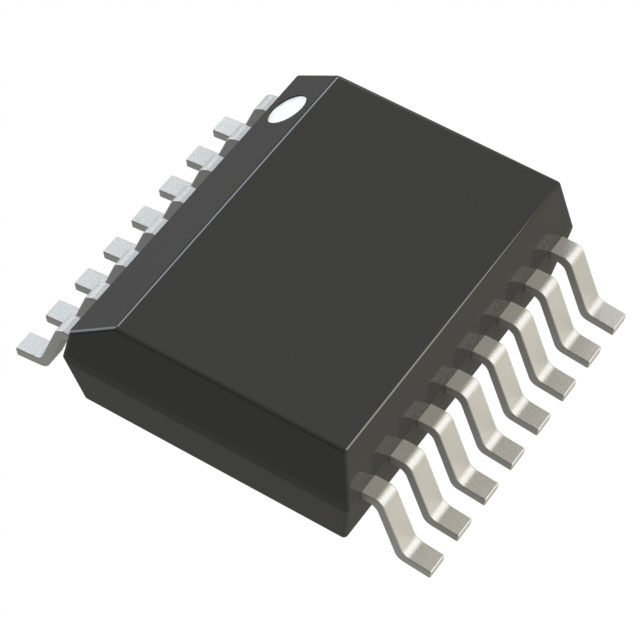

IC REG BUCK ADJ/1.25V 1A 16QSOP
