- Product Model DMN63D8LDW-7
- Brand Zetex Semiconductors (Diodes Inc.)
- RoHS 1
- Description MOSFET 2N-CH 30V 0.22A SOT363
- Classification Integrated Circuits - ICs
-
PDF
- 3000 0.05
- 6000 0.05
- 9000 0.04
- 30000 0.04
- 75000 0.04
- 150000 0.03
Technical Details

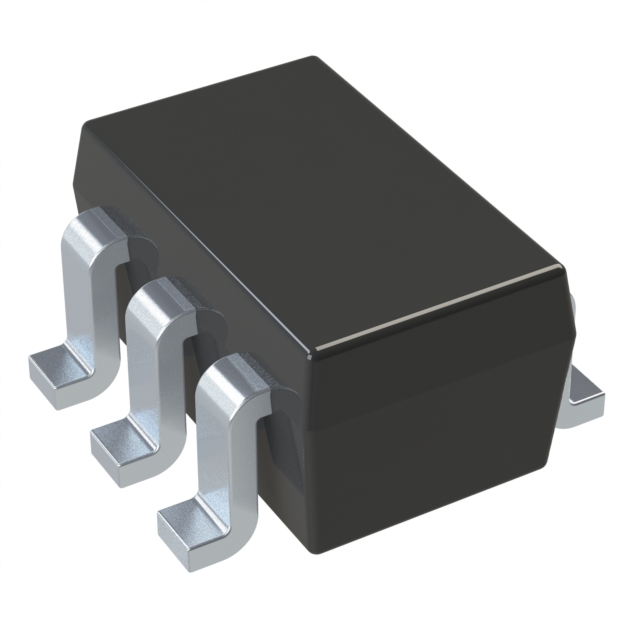

- Package / Case 6-TSSOP, SC-88, SOT-363
- Mounting Type Surface Mount
- Configuration 2 N-Channel (Dual)
- Operating Temperature -55°C ~ 150°C (TJ)
- Technology MOSFET (Metal Oxide)
- Power - Max 300mW
- Drain to Source Voltage (Vdss) 30V
- Current - Continuous Drain (Id) @ 25°C 220mA
- Input Capacitance (Ciss) (Max) @ Vds 22pF @ 25V
- Rds On (Max) @ Id, Vgs 2.8Ohm @ 250mA, 10V
- Gate Charge (Qg) (Max) @ Vgs 0.87nC @ 10V
- FET Feature Logic Level Gate
- Vgs(th) (Max) @ Id 1.5V @ 250µA
- Supplier Device Package SOT-363
