Technical Details

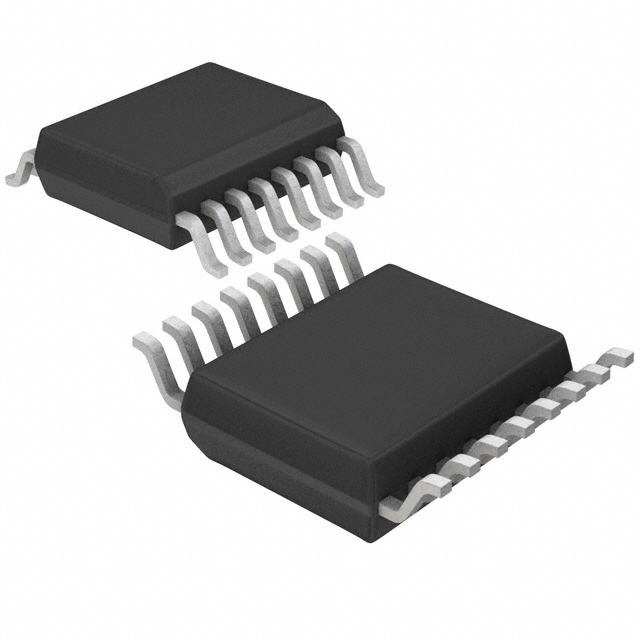

• Package / Case 16-SOIC (0.295", 7.50mm Width)
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 105°C
• Voltage - Forward (Vf) (Typ) 1.6V
• Current - Peak Output 1.5A
• Technology Optical Coupling
• Current - Output High, Low 1A, 1A
• Voltage - Isolation 5000Vrms
• Approval Agency CSA, IEC/EN/DIN, UR
• Supplier Device Package 16-SO
• Rise / Fall Time (Typ) 50ns, 50ns
• Common Mode Transient Immunity (Min) 15kV/µs
• Propagation Delay tpLH / tpHL (Max) 250ns, 250ns
• Pulse Width Distortion (Max) 100ns
• Number of Channels 1
• Current - DC Forward (If) (Max) 25 mA
• Voltage - Output Supply 15V ~ 30V
