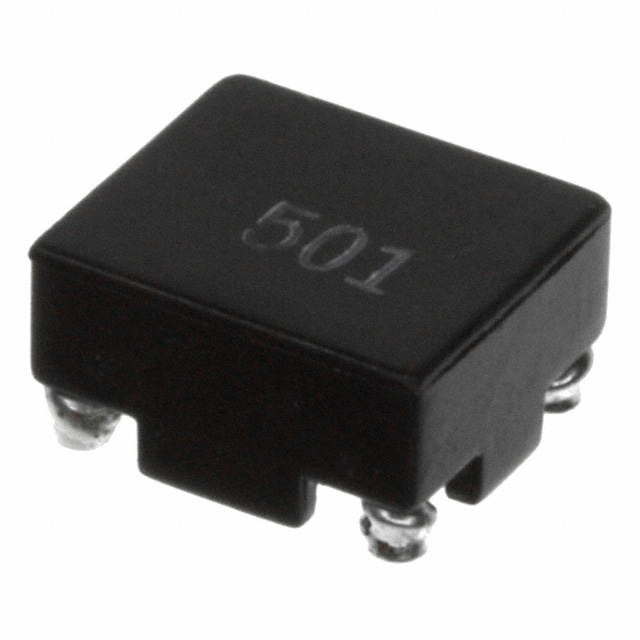

Technical Details

• Package / Case Horizontal, 4 Flat Lead
• Filter Type Signal Line
• Size / Dimension 0.236" L x 0.130" W (6.00mm x 3.30mm)
• Mounting Type Surface Mount
• Number of Lines 2
• Operating Temperature -40°C ~ 125°C
• Height (Max) 0.138" (3.50mm)
• Voltage Rating - DC 80V
• Current Rating (Max) 400mA
• DC Resistance (DCR) (Max) 320mOhm
• Inductance @ Frequency 51 µH @ 100 kHz
• Impedance @ Frequency 2.5 kOhms @ 25 MHz
