- Product Model MAX8869EUE18+
- Brand Maxim Integrated / Analog Devices
- RoHS 1
- Description IC REG LIN POS ADJ 1A 16TSSOP
- Classification Integrated Circuits - ICs
-
PDF
- 1 6.78
- 10 6.12
- 96 5.07
- 288 4.84
- 576 4.41
- 1056 3.85
- 2592 3.7
Technical Details

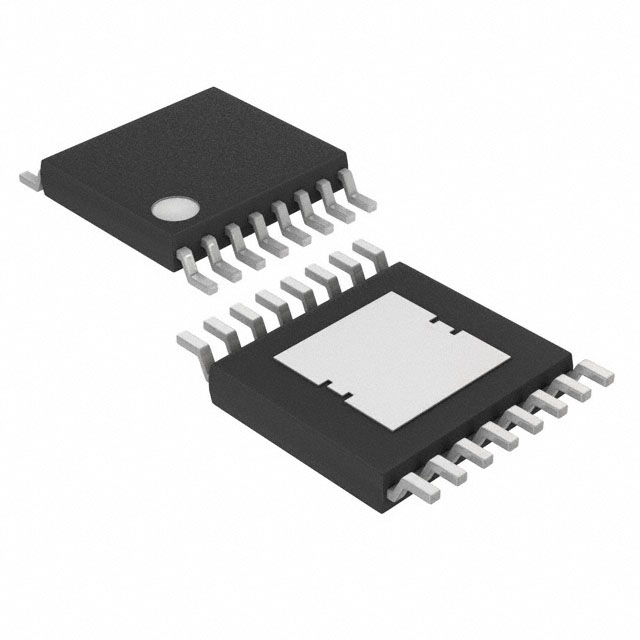

- Package / Case 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Output Type Adjustable (Fixed)
- Mounting Type Surface Mount
- Current - Output 1A
- Operating Temperature -40°C ~ 85°C (TA)
- Output Configuration Positive
- Current - Quiescent (Iq) 2 mA
- Voltage - Input (Max) 5.5V
- Number of Regulators 1
- Supplier Device Package 16-TSSOP-EP
- Voltage - Output (Max) 5V
- Voltage - Output (Min/Fixed) 0.8V (1.8V)
- Control Features Enable, Reset, Soft Start
- PSRR 54dB (100kHz)
- Protection Features Over Current, Over Temperature, Short Circuit
- Current - Supply (Max) 2.5 mA
