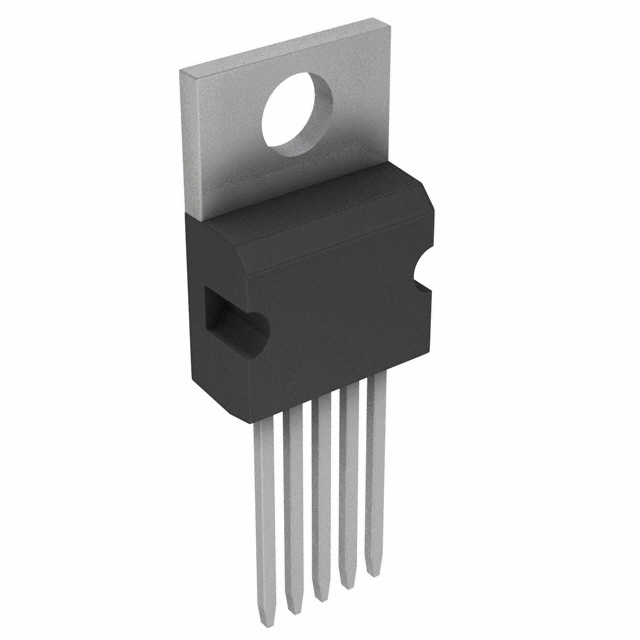

- Product Model LM2577T-ADJ/NOPB
- Brand Texas Instruments
- RoHS 1
- Description IC REG MULT CONFIG ADJ 3A TO220
- Classification Integrated Circuits - ICs
-
PDF
- 1 7.6
- 10 6.86
- 45 6.54
- 135 5.68
- 270 5.43
- 540 4.95
- 1035 4.31
Technical Details
- Package / Case TO-220-5
- Output Type Adjustable
- Mounting Type Through Hole
- Number of Outputs 1
- Function Step-Up, Step-Up/Step-Down
- Current - Output 3A (Switch)
- Operating Temperature -40°C ~ 125°C (TJ)
- Output Configuration Positive
- Frequency - Switching 52kHz
- Voltage - Input (Max) 40V
- Topology Boost, Flyback, Forward Converter
- Supplier Device Package TO-220-5
- Synchronous Rectifier No
- Voltage - Output (Max) 60V (Switch)
- Voltage - Input (Min) 3.5V
- Voltage - Output (Min/Fixed) 1.23V
