Technical Details

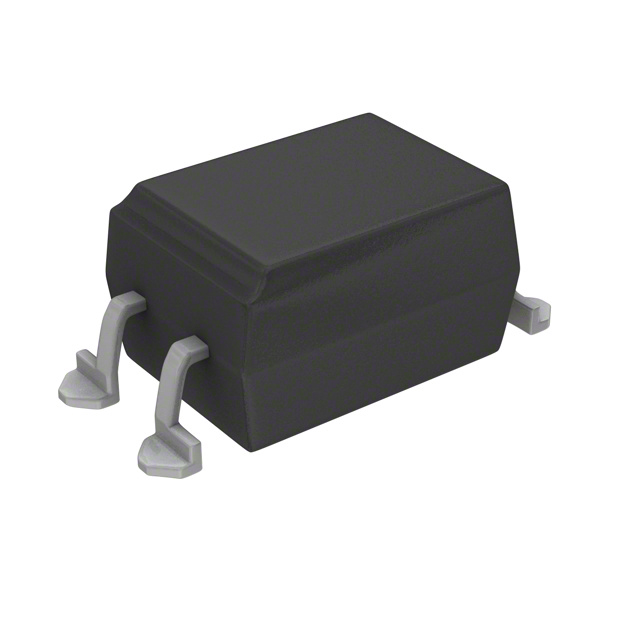

• Package / Case 4-SMD, Gull Wing
• Output Type Transistor
• Mounting Type Surface Mount
• Operating Temperature -55°C ~ 105°C
• Voltage - Forward (Vf) (Typ) 1.2V
• Input Type AC, DC
• Current - Output / Channel 50mA
• Voltage - Isolation 5000Vrms
• Current Transfer Ratio (Min) 50% @ 1mA
• Vce Saturation (Max) 200mV
• Current Transfer Ratio (Max) 150% @ 1mA
• Supplier Device Package 4-SMD
• Voltage - Output (Max) 70V
• Rise / Fall Time (Typ) 4µs, 3µs
• Number of Channels 1
• Current - DC Forward (If) (Max) 50 mA
