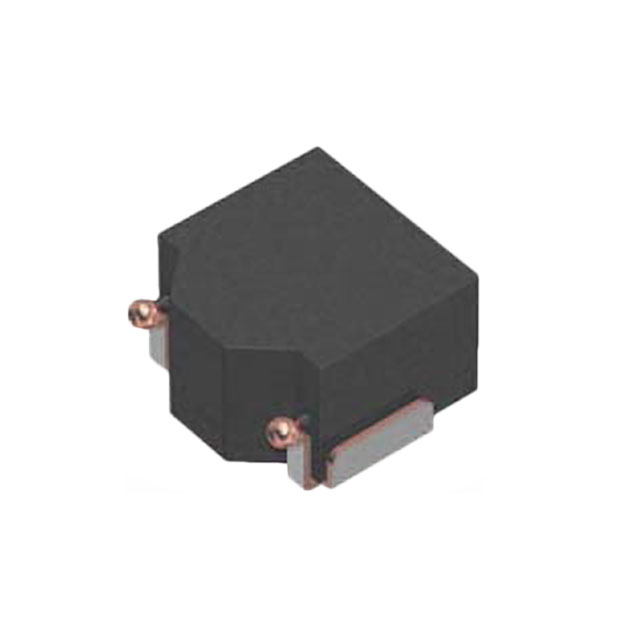

- Product Model SPM5020T-6R8M-LR
- Brand TDK Corporation
- RoHS Yes
- Description FIXED IND 6.8UH 2.8A 118.5 MOHM
- Classification Fixed Inductors
-
PDF
Inventory:1982
Pricing:
- 500 0.82
- 1000 0.75
- 2500 0.73
- 5000 0.7
- 12500 0.68
Technical Details
- Tolerance ±20%
- Package / Case Nonstandard
- Size / Dimension 0.213" L x 0.201" W (5.40mm x 5.10mm)
- Mounting Type Surface Mount
- Shielding Shielded
- Type Drum Core, Wirewound
- Operating Temperature -40°C ~ 125°C
- DC Resistance (DCR) 118.5mOhm Max
- Current - Saturation (Isat) 4.2A
- Material - Core Metal
- Inductance Frequency - Test 100 kHz
- Height - Seated (Max) 0.079" (2.00mm)
- Inductance 6.8 µH
- Current Rating (Amps) 2.8 A
