技术参数

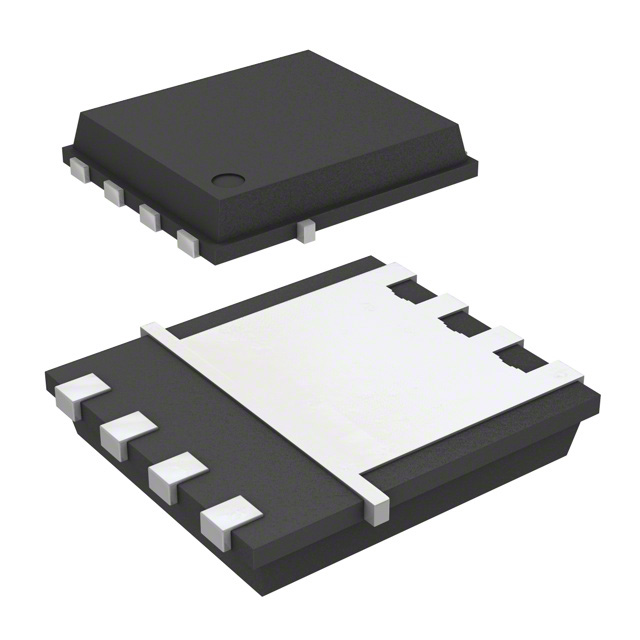

• Package / Case 8-PowerTDFN
• Mounting Type Surface Mount
• Operating Temperature -55°C ~ 175°C (TJ)
• Technology MOSFET (Metal Oxide)
• FET Type P-Channel
• Current - Continuous Drain (Id) @ 25°C 80A (Tc)
• Rds On (Max) @ Id, Vgs 4.9mOhm @ 80A, 10V
• Power Dissipation (Max) 214W (Tj)
• Vgs(th) (Max) @ Id 3V @ 250µA
• Supplier Device Package 8-PQFN (5x6)
• Grade Automotive
• Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
• Vgs (Max) ±16V
• Drain to Source Voltage (Vdss) 40 V
• Gate Charge (Qg) (Max) @ Vgs 107 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds 4840 pF @ 20 V
• Qualification AEC-Q101
• ECCN EAR99
• HTSUS 8541.29.0095
• Moisture Sensitivity Level (MSL) 1 (Unlimited)
• REACH Status REACH Unaffected
• RoHS Status ROHS3 Compliant
